DC 19-2: 19-Hole Anaerobic MBBR Media with Vertical Surface Striations
| Place of Origin: | China |
| Brand Name: | Decycle |
| Model Number: | DC 19-2 |
| Certification: | CE/ISO 9001/FDA/ROHS |
| Material: | 99% virgin HDPE and 1% Carbon Black Masterbatch |
| Life span: | > 15 years |
| Size: | Φ25*10mm |
| Number of Hole: | 19 holes |
| Density: | 0.94-0.97 g/cm3 |
| Surface Area: | >600m2/m3 |
| Filling ratio: | 15%-65% |
| Number of carriers in a cubic meter: | >118000pcs/m3 |
| Applicable Temperature: | 5-60℃ |
| The weight of 1 m3: | 95 KG |
| Minimum Order Quantity: | 1 cm3 |
| Packaging Details: | 1 cm3 or 0.1 cm3 |
| Payment Terms: | T/T, L/C, D/P |
Description

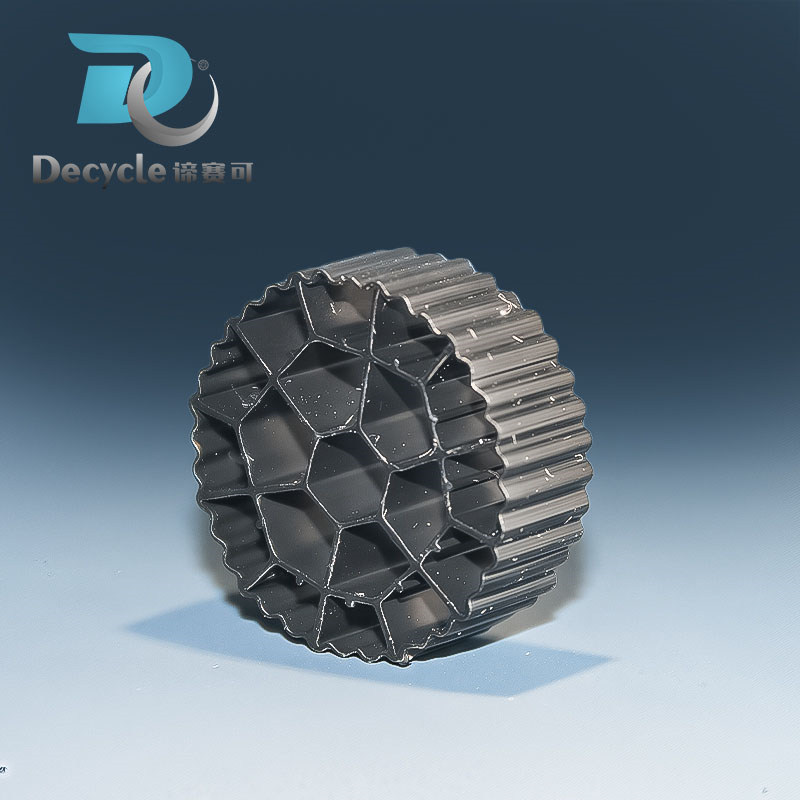

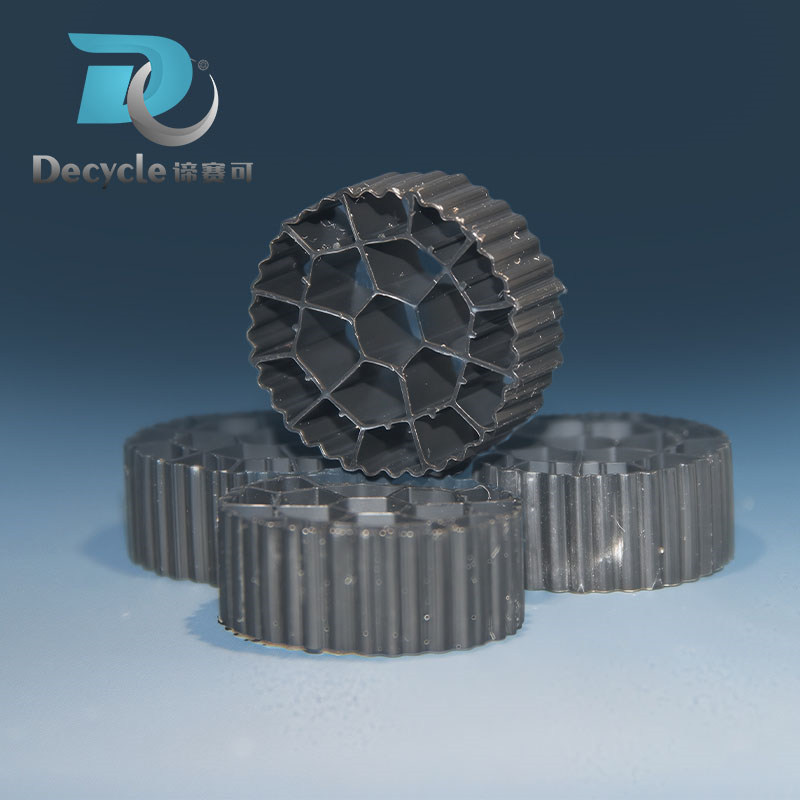

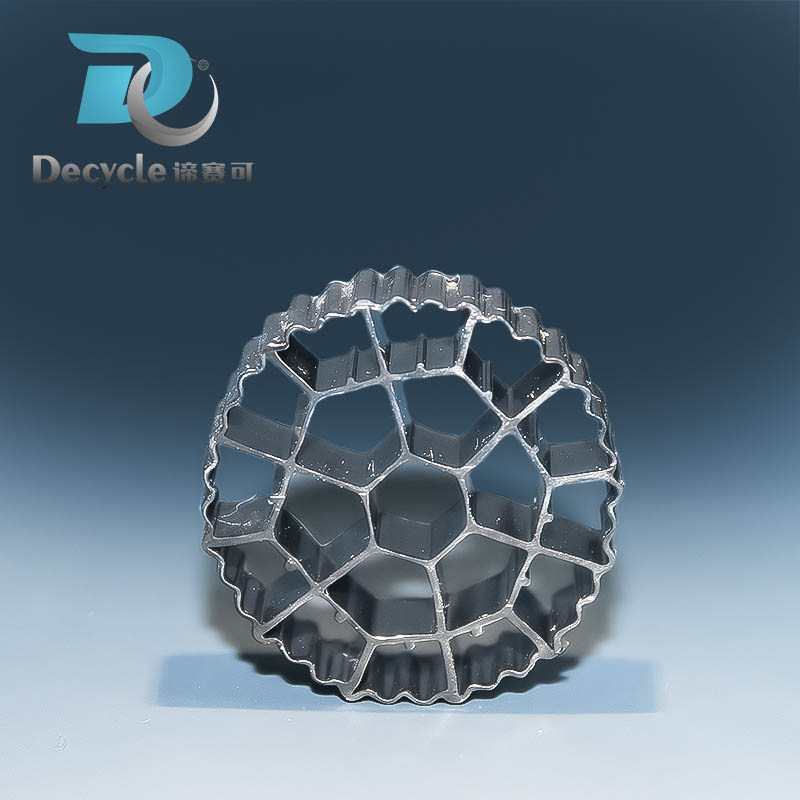

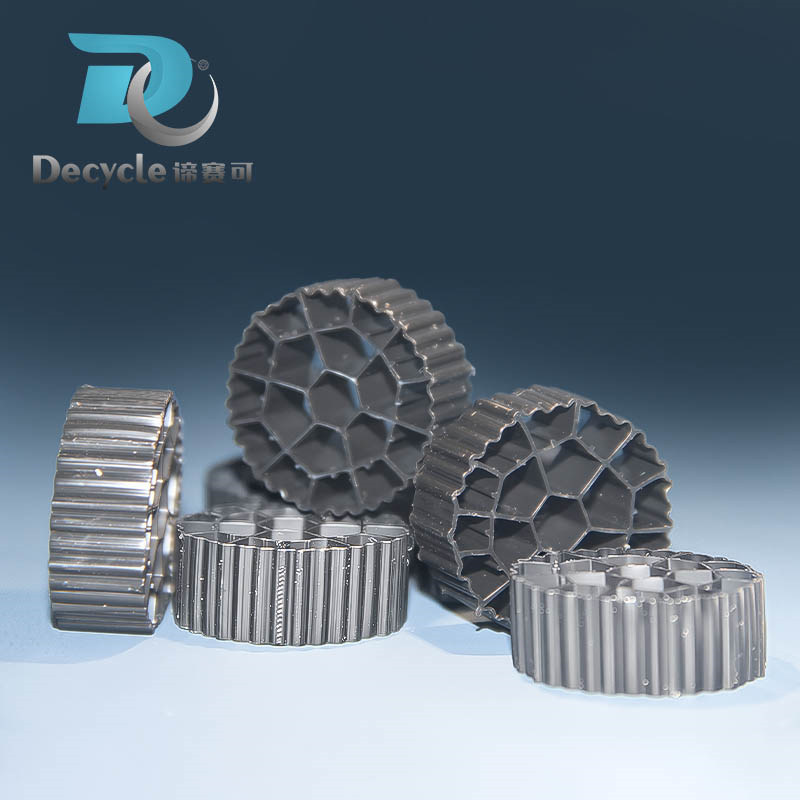

This Anaerobic Special BioMedia is an evolution of the established DC 19-2 MBBR design, optimized specifically for anaerobic biological wastewater treatment. The media element is a rotationally molded, high-density polyethylene (HDPE) cylinder featuring nineteen precisely engineered flow-through holes and prominent vertical surface striations (stripes) across its entire external surface. These key design elements work synergistically:
● 19 Flow-Through Holes: Promote optimal internal and external hydraulic flow patterns, ensuring efficient substrate and nutrient diffusion throughout the biofilm, minimizing dead zones, and enhancing mixing within the anaerobic reactor.
● Vertical Surface Striations: Significantly increase the protected surface area available for biofilm attachment. The striations create micro-turbulence at the media surface, improving mass transfer of substrates to the biomass and protecting the developing biofilm from excessive shear forces. This texture is crucial for initial biofilm formation and long-term retention of slow-growing anaerobic microorganisms.
● Anaerobic Optimization: The material density is carefully controlled to ensure proper fluidization under anaerobic mixing conditions while preventing flotation issues common in anaerobic environments. The design prioritizes creating an ideal habitat for diverse anaerobic microbial consortia responsible for complex degradation processes like acidogenesis and methanogenesis.
This media is ideal for applications including anaerobic digestion (pre-treatment or post-treatment), anaerobic lagoons, high-strength industrial wastewater treatment (e. g. , food & beverage, pharmaceutical, chemical), and other processes requiring robust anaerobic biofilm cultivation.
Specifications
| Category | Specification | Notes/Units |
| Model Designation | Anaerobic MBBR Media (DC 19-1 Derivative) | Industry Standard Name |
| Primary Structure | Short Cylinder with Internal Cross-Protected Wells | Diameter ≈ Height |
| Key Feature | Vertical Ridges on External Surface | Enhances mixing, protects biofilm |
| Hole Configuration | 19 Through-Holes | Provides internal surface area & protection |
| Material | High-Density Polyethylene (HDPE) | Virgin grade, UV-stabilized (optional) |
| Color | Typically Black | |
| Nominal Diameter | 25 mm (0.98 inches) | Outer Dimension |
| Nominal Height | 10 mm (0.39 inches) | Outer Dimension |
| Specific Gravity | 0.94 - 0.97 | g/cm³ |
| Theoretical Protected Surface Area | >600m2/m3 | |
| Void Fraction | ≥ 90% | % of media volume |
| Operating pH Range | 2 - 12 | |
| Max. Continuous Temp. | 60°C (140°F) | PE material limit |
| Filling Ratio | 15% - 65% | % of reactor volume (design dependent) |
FAQ
Q: Are you a trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally, it is 10-20 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge, there are delivery cost to be paid by buyer.
Q: What is your terms of payment?
A: T/T L/C.
